[RW132I040AUH] RISCO Wireless Input/Output Expander Module Suits WiComm Pro and Agility4

[RW132I040AUH] RISCO Wireless Input/Output Expander Module Suits WiComm Pro and Agility4

$307.00 AUD
$307.00 AUD
Sale Sold out

Description:

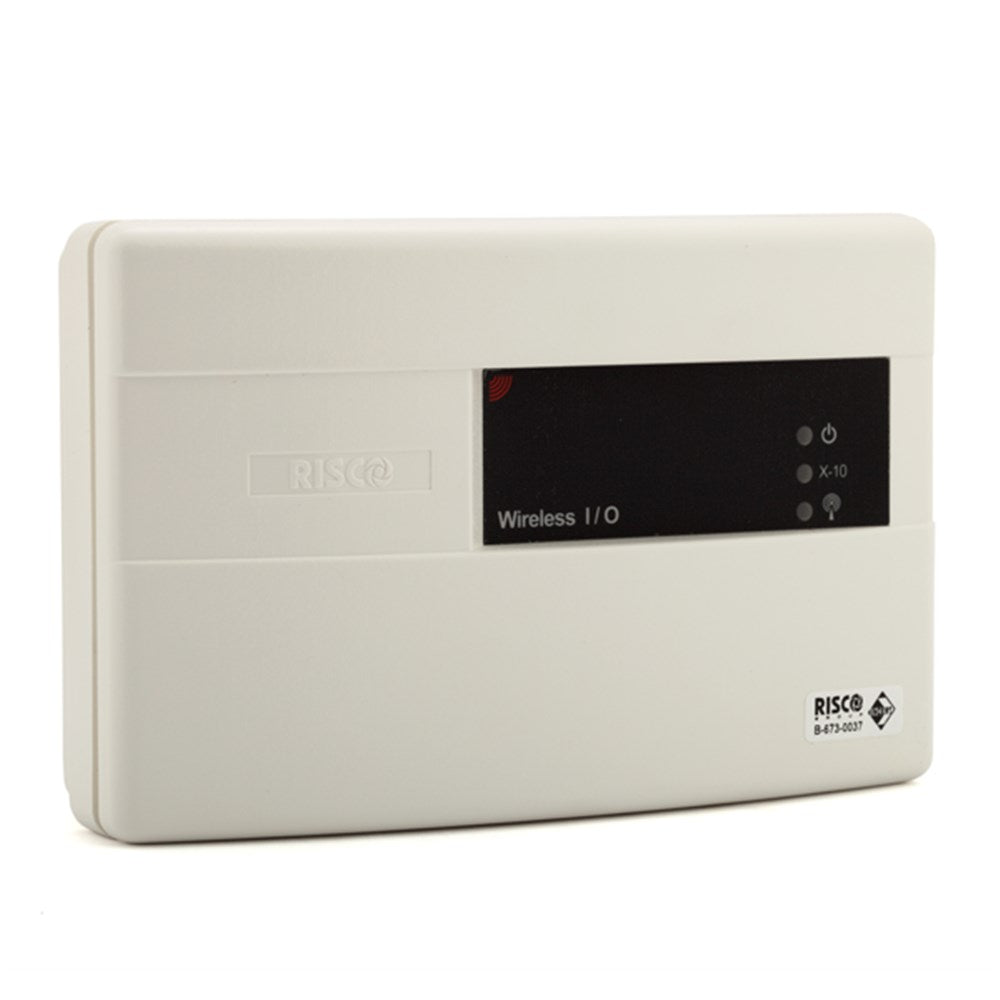

The Agility™3&4, WiComm Pro WL I/O Expander Module is a 2-way wireless input/ output expander enabling the connection of hard wired devices to the system and thereby increasing flexibility and future expansion.

Using the home automation module an Agility™ installation can be adjusted to support new trends or security solutions that reflect the changing needs in the market regardless of the original installation.

The Wireless Home Automation Module supports 4 hardwired zones, 4 outputs that can be used to control for example, the lights, garage door, garden sprinkler or other home devices.

  • Bi-directional wireless communication.
  • 2 Relay Outputs (3Amp).
  • 2 Transistor Outputs (500 mA).
  • 4 Inputs (NO, NC, EOL).
  • Fully supervised.
  • Dual tamper protection (Box & Wall).
  • Compatible with the following RISCO systems: Agility™.

Electrical Characteristics:

  • Power Supply: 14.4VDC/0.5A minimum or 9VAC/0.5A minimum.
  • Current Consumption: 0.35A maximum.
  • Rechargeable Backup Batteries: 3 x size AA NiMH cylindrical cell 1.2V 2300 mAH.
  • Relay Outputs: 2 x 3 Amps 24 VDC programmable.
  • Transistor Outputs: 2 x 500mA transistors (Open Collector).
  • Operating Temperature: -10°C to 40°C.
  • Storage Temperature: -20°C to 60°C.

Physical Characteristics:

  • Dimensions: 14.5 cm x 9.0 cm x 4.0 cm.
  • Weight (with batteries): 0.24 Kg.

Wireless Characteristics:

  • RF immunity: According to EN 50130-4
  • Frequency: 433.92 MHz

Compliance:

  • EN50131-1, EN50131-3 Grade 2.
  • EN50130-5 Environmental class II.
  • EN50131-6 Type A.



Technical Specifications

Brand Risco
Module Wireless Input/Output Module
Suits Risco Agility
How Many Digital Inputs 4
How Many Outputs 2
