[RP432KPT000A] RISCO RisControl 8" Touchscreen Keypad Suits LightSYS+ and LightSYS2

[RP432KPT000A] RISCO RisControl 8" Touchscreen Keypad Suits LightSYS+ and LightSYS2

$446.00 AUD
$446.00 AUD
Sale Sold out

Description:

RisControl is a responsive, high resolution 8” touchscreen keypad, offering intuitive easy to use interface. With RisControl the user can control all alarm and cloud-based solutions from RISCO Group from one access point.

With a clear overview of the system status, easy arm/disarm functionality, and the option to view live video and recordings from the VUpoint Video Solution. RisControl communicates via the System BUS (RS-485) with the control panel.

The communication with RISCO Cloud is via WiFi.

The Touchscreen keypad is built for quick and easy installation with a mounting bracket and a detachable connector for easy wiring.

The RisControl keypad is compatible with LightSYS as of version 6.05.

The RisControl cannot be used as a programming keypad. A secondary keypad is required for panel programming (RP432KP0000A).
RISCO recommend connecting a maximum of 2 x RisControl keypads to the LightSYS panel.

https://youtu.be/VRIrREN5vWk

https://youtu.be/pbF19CC3bVE

Features:

  • Convenient access of keypad functions for a smart user experience.
  • Customizable user interface, easy to use.

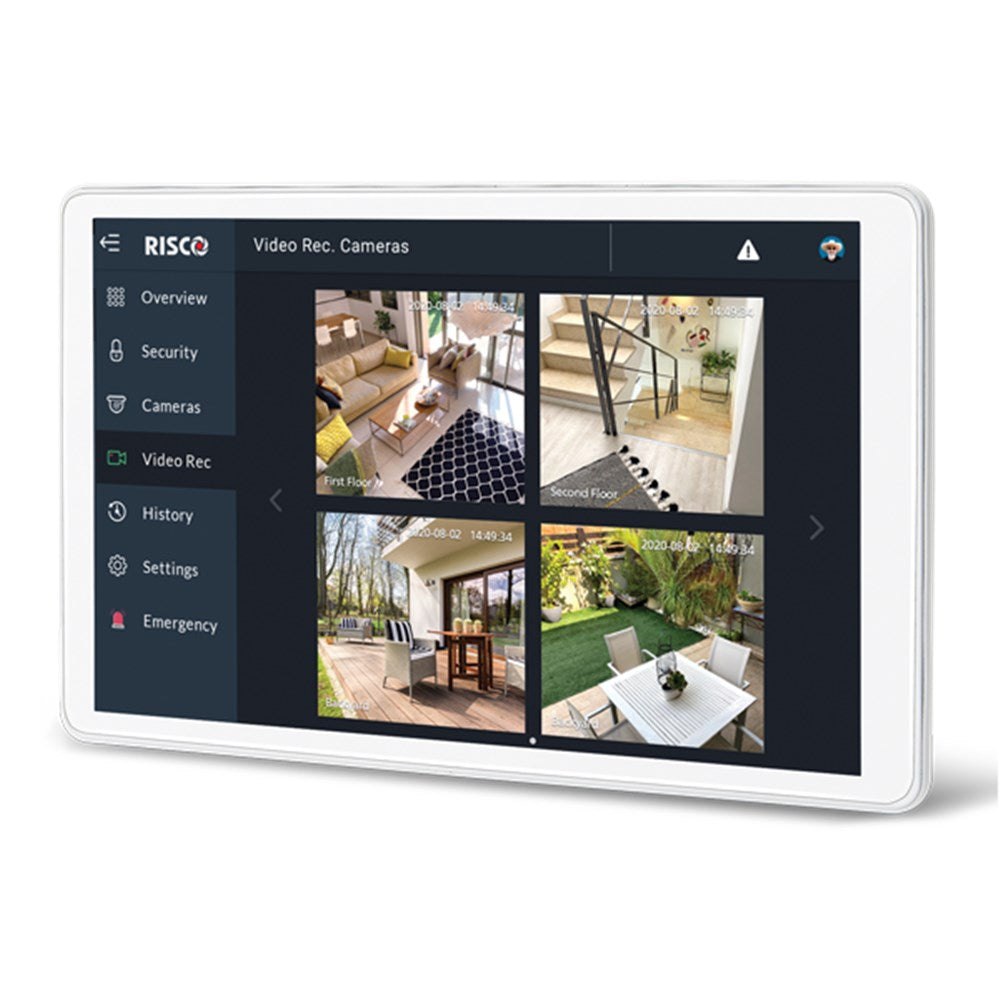

  • View live video and recordings by VUpoint Video Solution.
  • View images Camera Detectors.
  • Detachable connector for easy wiring.
  • Automated Software updates via Wi-Fi.
  • Grade 3 certified.

Technical Specifications:


  • Display 8 “ IPS.
  • Resolution 800 x 1280.
  • Speaker 8 Ohm / 1W.
  • Wi-Fi 802.11 b/g/n 2.4 GHz.
  • System interface RS-485.
  • Protection Wall Tamper.
  • Dimensions 208 x 129 x 24 mm.
  • Weight 481g.
  • Operating Voltage 13V ±10%.
  • Power consumption 8W.
  • Operating Temperature -10°C to 55°C.
  • Standard EN50131-3, Grade 3 Environmental Class II, PD 6662:2017.

Technical Specifications

Brand Risco
Keypads Yes
Module Keypad
Wi-Fi 2.4 GHz Connectivity Yes
Wireless Connectivity Yes
Diagonal Screen Size in inches 8
Screen Resolution 800 x 1200
Touch Screen Yes
RS-485 Interface Yes
Suits Risco LightSYS
