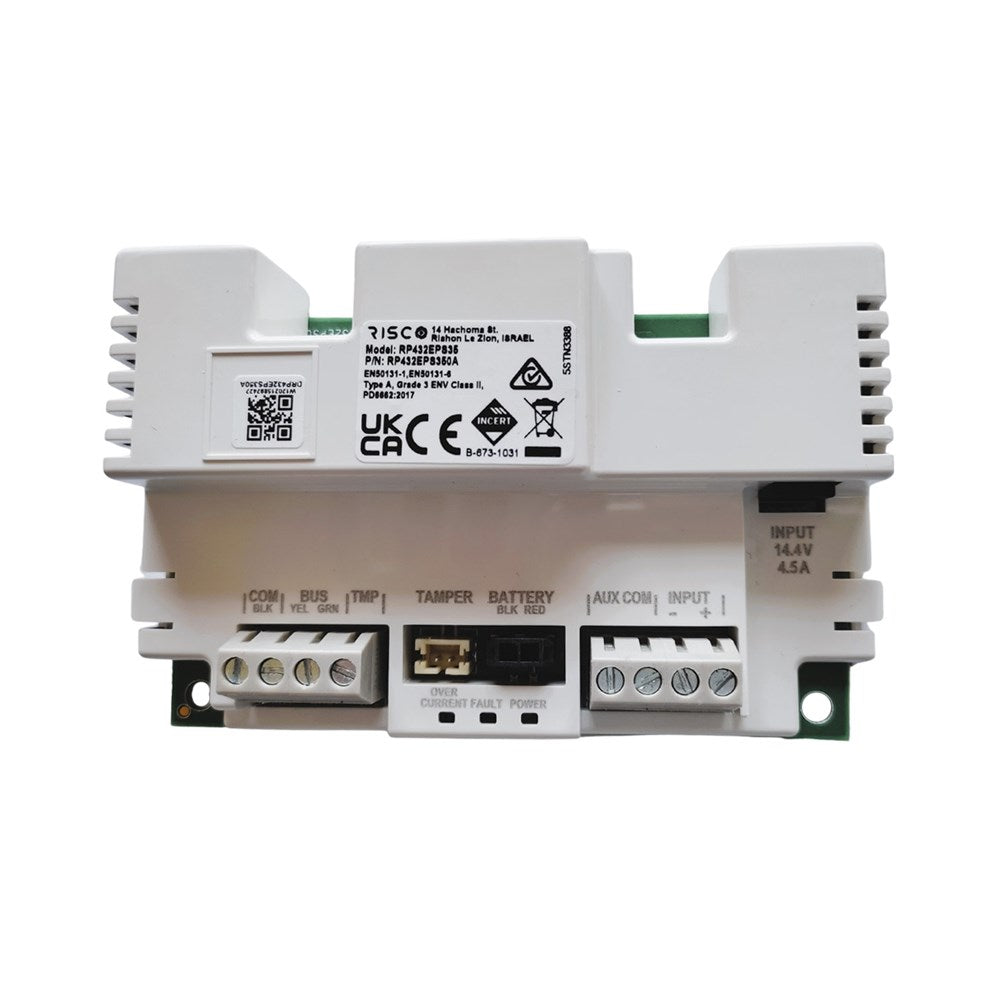

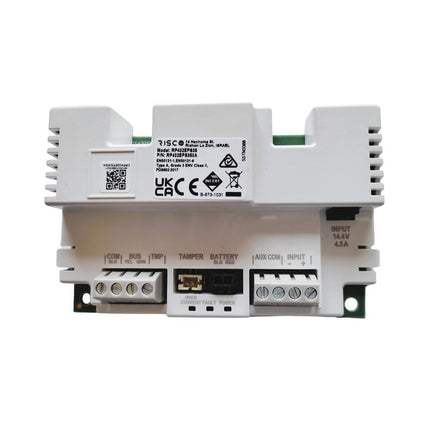

[RP432EPS350A] RISCO 3.5Amp Switching Mode BUS Power Supply Suits LightSYS+

[RP432EPS350A] RISCO 3.5Amp Switching Mode BUS Power Supply Suits LightSYS+

$101.00 AUD
$101.00 AUD
Sale Sold out

Description:

The 3.5 Amp power supply expansion module is a reliable and cost-effective solution for installers with the flexibility of installing it in its own enclosure away from the control panel, while remaining fully supervised.

The panel continuously monitors all functions of the power supply including AC power fail, low battery, output voltage, current overload conditions. A fault message will appear on the keypad as well as a report of the event in case of a problem.

The 3.5 Amp power supply vs a cost-effective solution that can be easily installed into any of the RISCO boxes, allowing installers to use the box of their choice.

It is shielded by a robust plastic casing with optimum protection. This minimises the possibility of any damage occurring during the transportation or installation process.

The identification of the power supply is done automatically with the BUS Scan and not with a DIP switch.

The 3.5 Amp power supply is compatible with LightSYS+ only.

Technical Specifications:

  • Input voltage – AC/DC adapter input 100 -240VAC Output 14.4V 4.5A +- 5%.
  • AUX out 11-14Vdc up to 3.5A max.
  • 80% Battery capacity charge within 24H (EN50131-6 grade 3).
  • Deep discharge protection with automatic override.
  • Up to 21AH battery.
  • Automatic switch between back-up battery and main power
  • Supervise back-up battery (with load) status.
  • Supervise main power.
  • Supervise Aux Out.
  • Short circuit protection for back-up battery and auxiliary out.
  • Tamper input.
  • Diagnostic – voltage, current.
  • BUS communication meets RISCO BUS protocol and hardware.
  • Supports remote upgrade.

Technical Specifications:

Brand Risco
Power Output 3.5 A at 11 to 14 Vdc
Suits Risco LightSYS+
