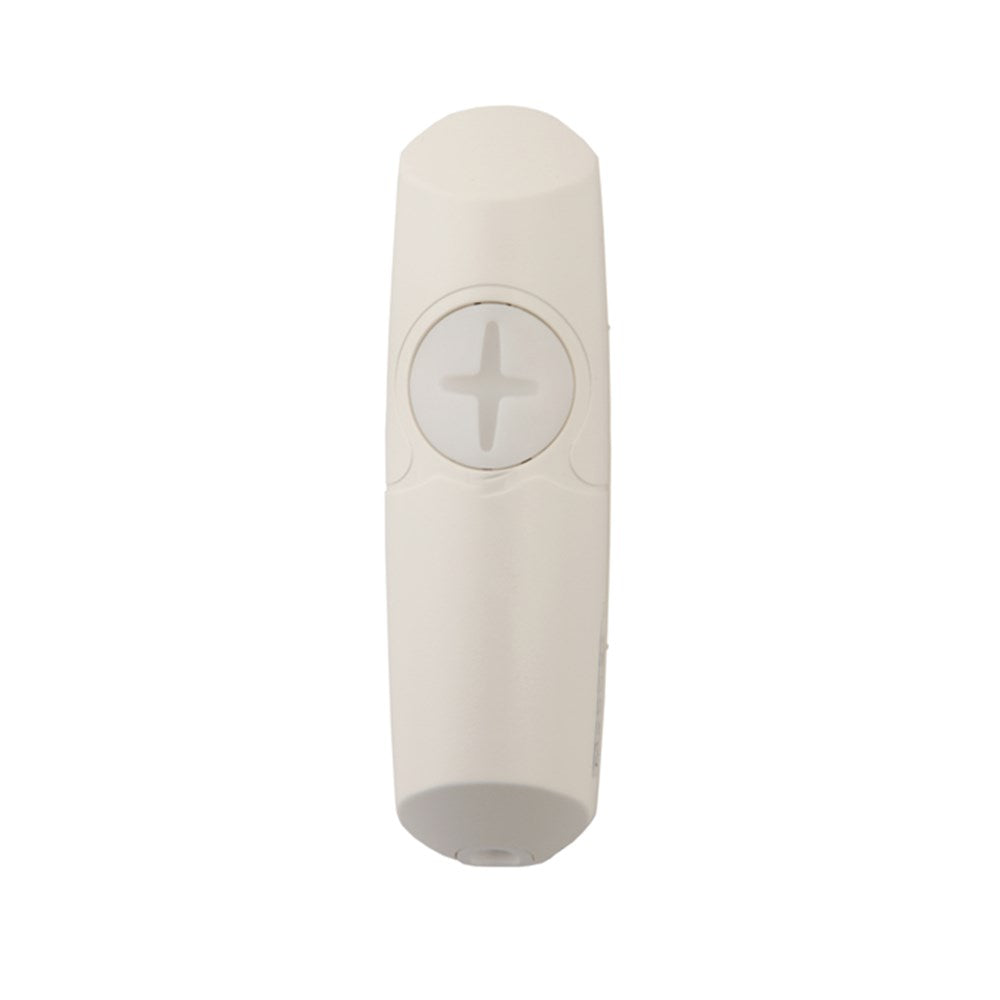

[RK600S00000B] RISCO ShockTec Grade 2 Vibration Detector

[RK600S00000B] RISCO ShockTec Grade 2 Vibration Detector

$40.50 AUD
$40.50 AUD
Sale Sold out

Description:

ShockTec™ is a digital shock detector providing reliable 24-hour perimeter protection. A break-in is detected as soon as the intruder attempts to force, smash, drill or even saw through the protected window, door, wall or roof.

ShockTec™ employs an advanced digital microprocessor to analyse the vibration signal received from the piezo electric sensor.

A unique feature of ShockTec™ 600S is its digital sampling of the signal simultaneously in two separate channels, each channel amplified at a different gain. This provides an extremely wide dynamic range of the sampled signal, enabling precise measurement and analysis of the shock signal.

  • Digital Microprocessor with Intelligent Digital Signal Processing.
  • Gross Attack detection.
  • Intelligent Digital Signal processing – differentiates between naturally caused vibrations and cuts out frequencies that cannot be caused by an illegal entry attempt.
  • Ideal for windows, doors, walls and roofs.
  • Encapsulated bi-morph piezo electric sensor.
  • Supply voltage: 9V-16V DC.
  • Current consumption (typical): 12.5mA.
  • Operational temperature: -20°C to 60°C.
  • Maximum humidity: 95% non-condensing.
  • Sensitivity setting: Dual stage potentiometer.
  • Tri-colour LED indicator: Orange-over-sensitive, green: alarm & correct calibration, red: under-sensitive.
  • Contact ratings:
    Alarm relay: 100mA at 24VDC, NC,
    Tamper relay: 500mA at 24VDC, NC.
  • Alarm Time: 2.5 seconds.
  • Latching modes: Any or first to latch operation modes.
  • Max No. of units on Any Latch loop: 80.
  • Max No of units on 1st to Latch loop: 10
  • False alarm protection: Digital microprocessor signal processing and noise reduction with maximum ground plane.
  • Electrostatic discharge: No false alarms up to 8kV.
  • RF immunity: 40 V/m from 80MHz to 1GHz.
  • Enclosure material: Flame retardant ABS.
  • Enclosure dimensions: 25 x 28 x 95 mm.

Technical Specifications:

Brand Risco
Finish White
Type of Detector Vibration Detector
