The WatchIN™ Industrial Grade 3 Detector provides superior catch performance and immunity to false alarms, especially in extremely harsh environments such as production areas, warehouses, construction sites, shopping malls and hangars.

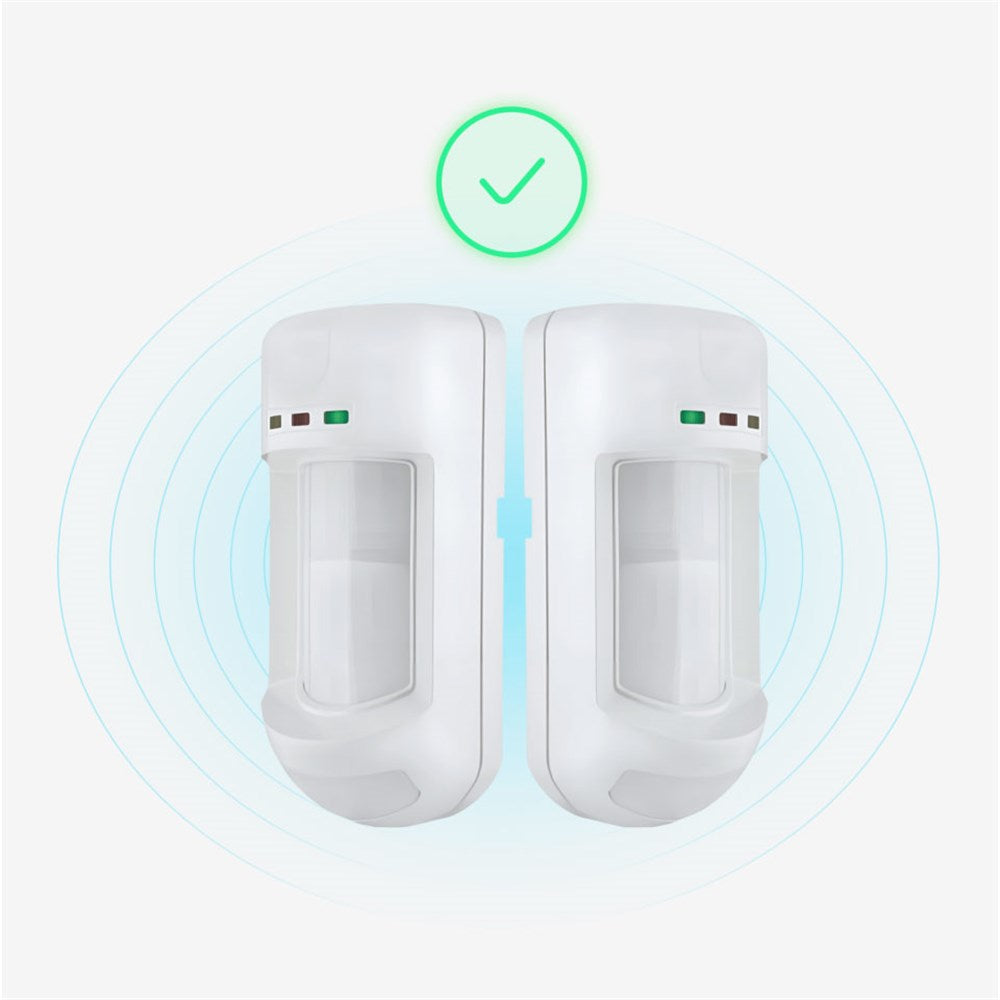

The WatchIN™ features advanced technologies such as Anti-Cloak™, Sway Recognition, and Active Infrared for anti-masking. With 25m wide-angle coverage, direct light immunity and robust design, it ensures reliable performance. Its flexible installation and easy maintenance save time and costs, making it ideal for industrial settings and ensures precise and cost-effective coverage of the protected area. While the anti-collision feature means they can be installed face-to-face or back-to back.
WatchIN™ detectors are built to withstand harsh indoor environments, making them the right choice for protecting production areas and warehouses. A rubber seal provides IP65 environment rating that protects against humidity and dust.
Specifications:
| Current consumption (Relay Mode) |
45mA at 12 VDC (Stand by)
60mA at 12 VDC (MAX with LED ON) |
| Current consumption (BUS Mode) |
30mA at 12 VDC (Stand by)
45mA at 12 VDC (MAX with LED ON) |
| Powerr output |
10dBm |
| Voltage requirements |
9-16 VDC |
| Alarm contacts |
30 VDC, 1A |
| AM contacts |
24 VDC, 0.1A |
| Dimensions LxWxD |
215 x 95 x 85 mm |
| Weight |
0.632Kg |
| RF immunity |
10V/m (80MHz to 2.7GHz) |
| Operating temperature |
-10°C to 55°C |
| Storage temperature |
-20°C to 60°C |
Link to RISCO Web for information,
Product code : RK325DT0000D

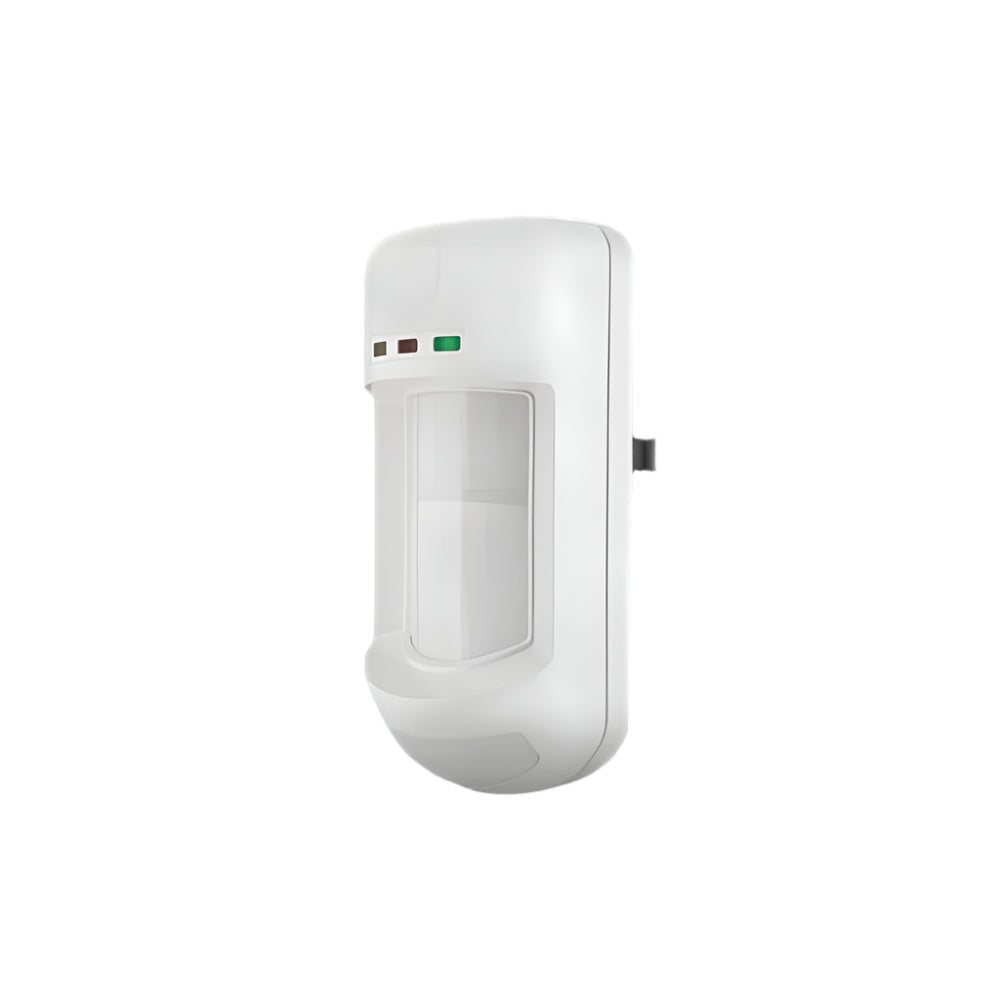

![[RK325DT0000D] RISCO WatchIN Grade 3 Dual Tech Indoor Detector Anti-Mask Relay and BUS Connectivity 25m Range includes Swivel Bracket](http://securestation.com.au/cdn/shop/files/RK325DT0000D.jpg?v=1750863972)
![[RK325DT0000D] RISCO WatchIN Grade 3 Dual Tech Indoor Detector Anti-Mask Relay and BUS Connectivity 25m Range includes Swivel Bracket](http://securestation.com.au/cdn/shop/files/RK325DT0000D_2.jpg?v=1750863972)

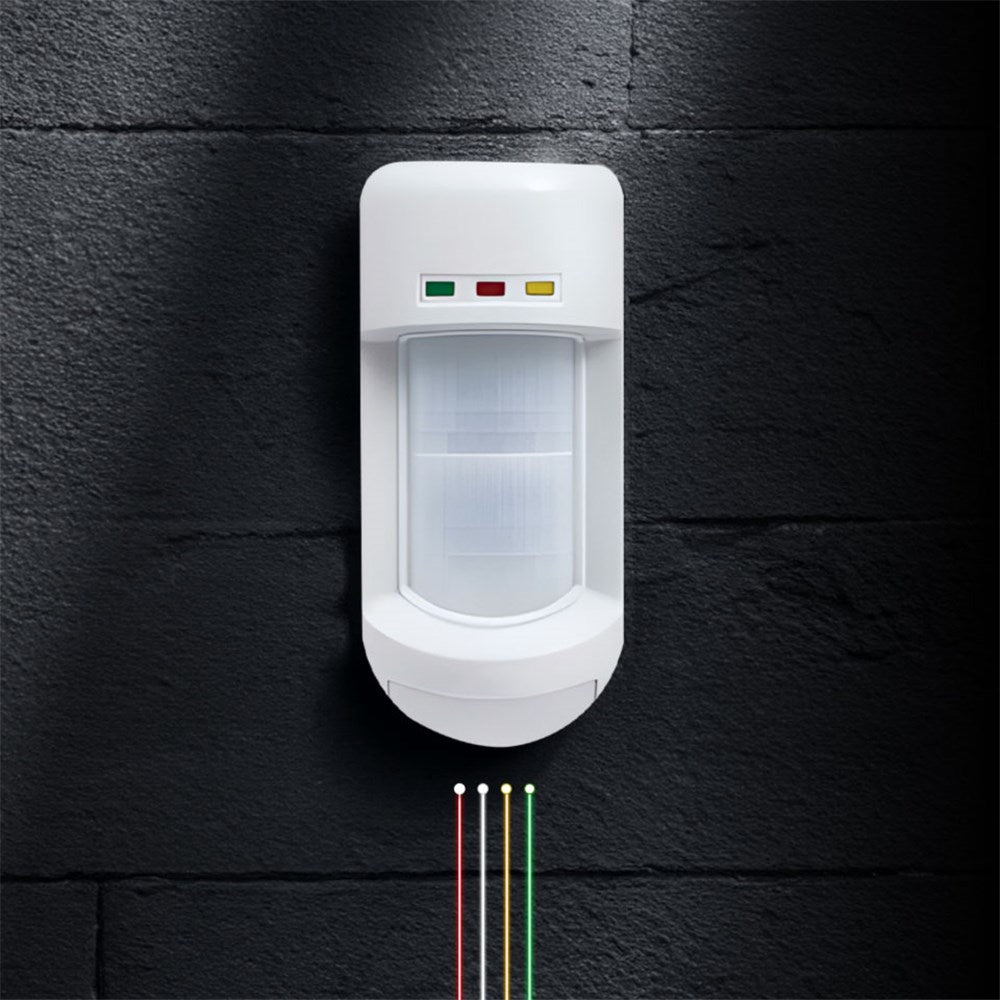

![[RK325DT0000D] RISCO WatchIN Grade 3 Dual Tech Indoor Detector Anti-Mask Relay and BUS Connectivity 25m Range includes Swivel Bracket](http://securestation.com.au/cdn/shop/files/RK325DT0000D_3.jpg?v=1750863972)
