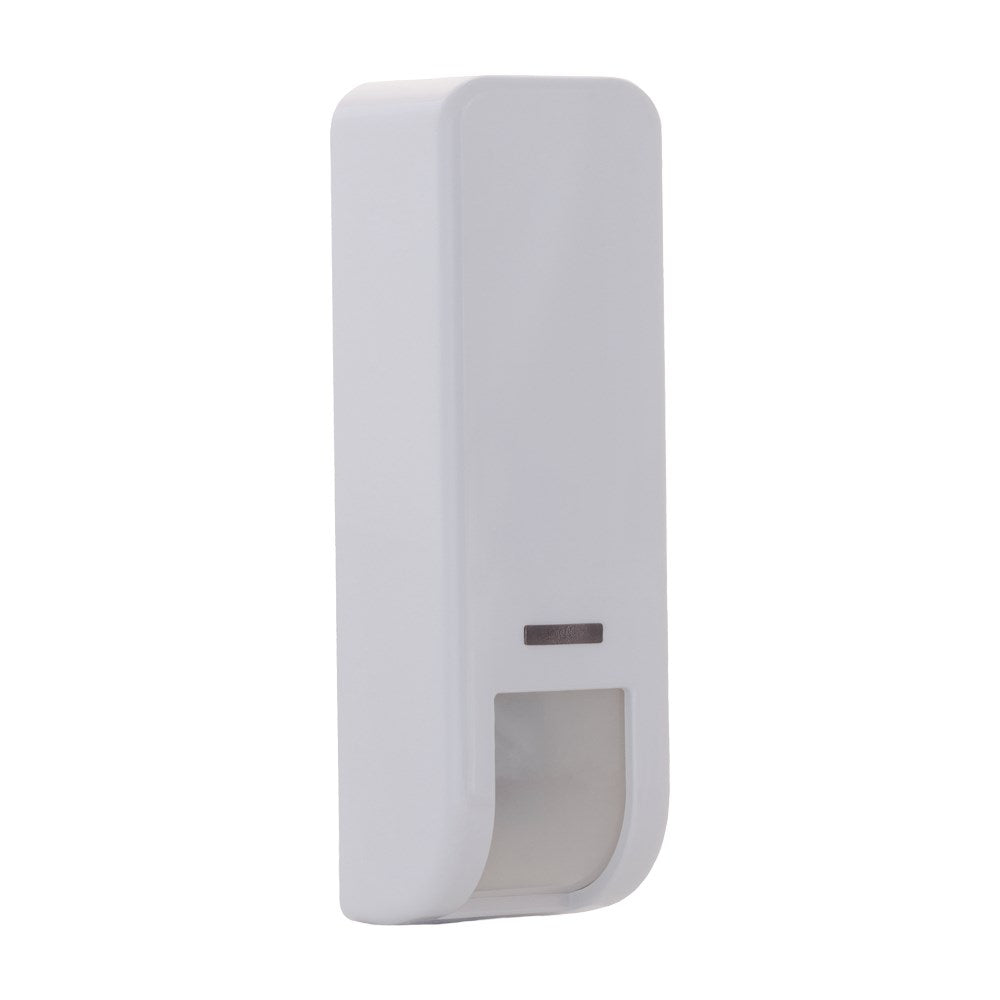

RISCO Group’s Wired Outdoor DT AM Curtain Detector was designed to significantly enhance outdoor protection 24 hours per day, using advanced technologies such as Active IR Anti-Mask, Integrated Dual Technology that combines K-Band microwave with a PIR sensor and Direct Sunlight Immunity to maximize protection and minimize false alarms.

The Wired Outdoor Curtain provides highest accuracy with a narrow beam featuring 1m width at the edge of 12m coverage range, efficiently protecting narrow spaces and thoroughly eliminating potential false alarm from objects moving outside the protected area.

• Dual Technology and a narrow beam for minimum false alarms.
• Flexible coverage range with adjustable four sensitivity levels.
• Active IR anti-mask.
• A 180° swivel bracket for easy installation included.
• RISCO Bus for diagnostics & control and cost-effective installation & maintenance.
• Coverage: Up to 12m, 5°.
• Mounting Height:1.8 – 3.0 m.
• Tamper: Wall.
• Current Consumption (relay mode): 15 μA.
• Current Consumption (bus mode):10 μA.
• Direct Sunlight Immunity.
• RF Immunity: 10MHz to 3GHz, According to EN50130-4.
• Operating Temperature: -20°C to 60°C.
• Environmental Rating: IP 65.
• Dimensions: 124 x 35 x 42 mm.
• 124 x 44 x 49 mm with bracket.
