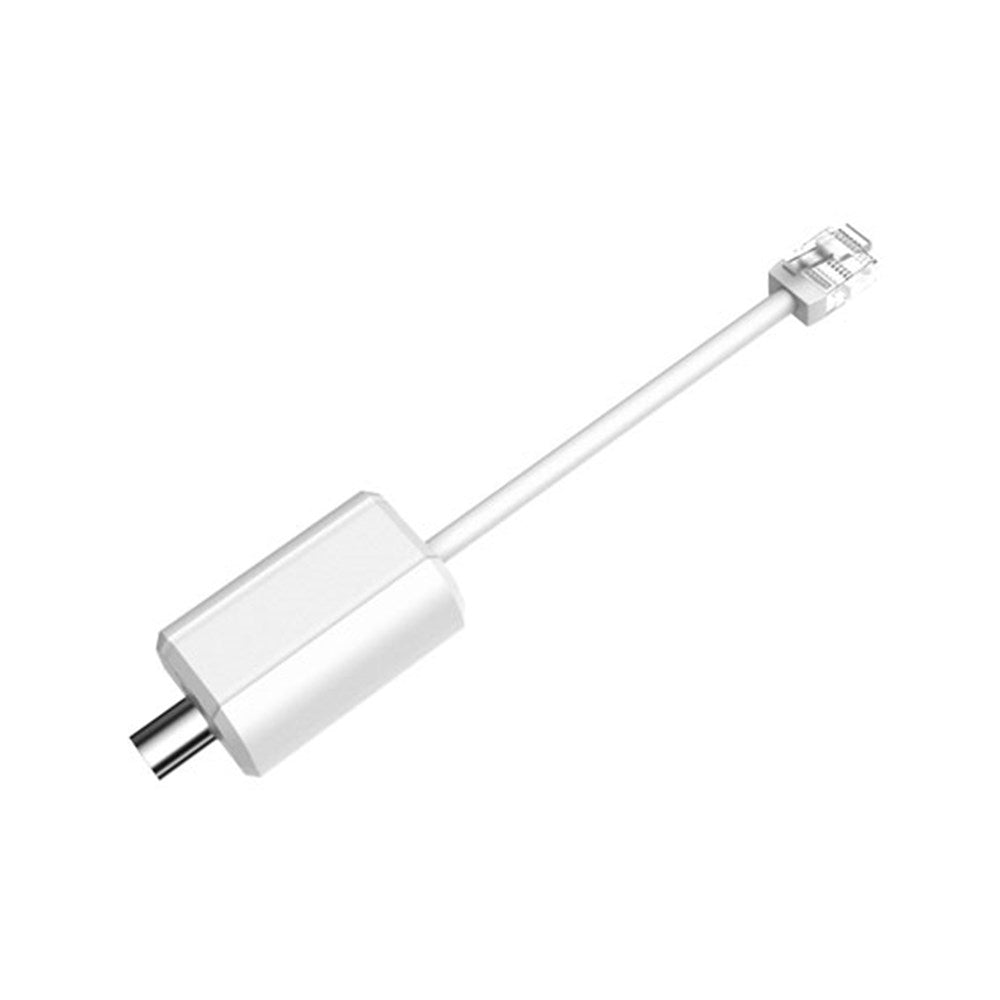

[LR1002] Dahua Ethernet over Coax Passive Converter

[LR1002] Dahua Ethernet over Coax Passive Converter

Product form

Description: EOC Passive Converter Supports IEEE802.3, IEEE802.3u standards. Port: 1*RJ45 10/100Mbps, 1*BNC. Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps. Supports MDI/MDIX... Read more

$19.60 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Dec 30, 2025 23:59:00 +0800
    • No hassle returns, 30 days return

    Description

    Description:

    EOC Passive Converter

    • Supports IEEE802.3, IEEE802.3u standards.
    • Port: 1*RJ45 10/100Mbps, 1*BNC.
    • Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps.
    • Supports MDI/MDIX self-adaption.
    • Supports long range power supply transmission via coaxial cable.

    Technical Specification

    Model

    LR1002

    Function Port

    1*10/100 Mbps Base-TX

    1*BNC

    Power Consumption

    <1W

    Transmission Bandwidth

    RG59 coaxial cable:

    400m/100Mbps, 1000m/10Mbps

    PoE Protocol

    -

    (Based on the power input from the ePoE switch)

    Network Standard

    IEEE802.3, IEEE802.3u

    Lightning Protection

    Common Mode 6KV

    Differential Mode 2KV

    Operating Temperature

    -40°C-60°C

    Operating Humidity

    0%~95%

    Weight

    28.3g

    Dimension (W×D×H)

    56mm×27mm×21mm

    Cable Length (m)

    Communication Bandwidth (Mbps)

    PoE Max Load Capacity (W)

    Hi-PoE Max Load Capacity (W)

    Network Operating Mode

    100

    100

    25.5

    50

    IEEE/E100

    200

    100

    25.5

    30

    E100

    300

    100

    18

    18

    E100

    400

    100

    15

    15

    E100

    500

    10

    12

    12

    E10

    800

    10

    6

    6

    E10

    1000

    10

    5

    5

    E10

    ePoE switch power supply voltage is 48V.

    The cable is RG59 coaxial cable, 100m DC impedance is no more than 5Ω.

    100

    100

    25.5

    52

    IEEE/E100

    200

    100

    25.5

    48

    E100

    300

    100

    25.5

    30

    E100

    400

    100

    20

    23

    E100

    500

    10

    16

    16

    E10

    800

    10

    10

    10

    E10

    1000

    10

    8

    8

    E10

    ePoE switch power supply voltage is 53V.

    The cable is RG59 coaxial cable, 100m DC impedance is no more than 5Ω.

    Technical Specifications

    Brand DAHUA
    Finish White
    RJ45 Ethernet Interface Yes
    BNC Interface Yes
    Can Be Powered via PoE Yes
    How Many PoE Ports 1

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight
