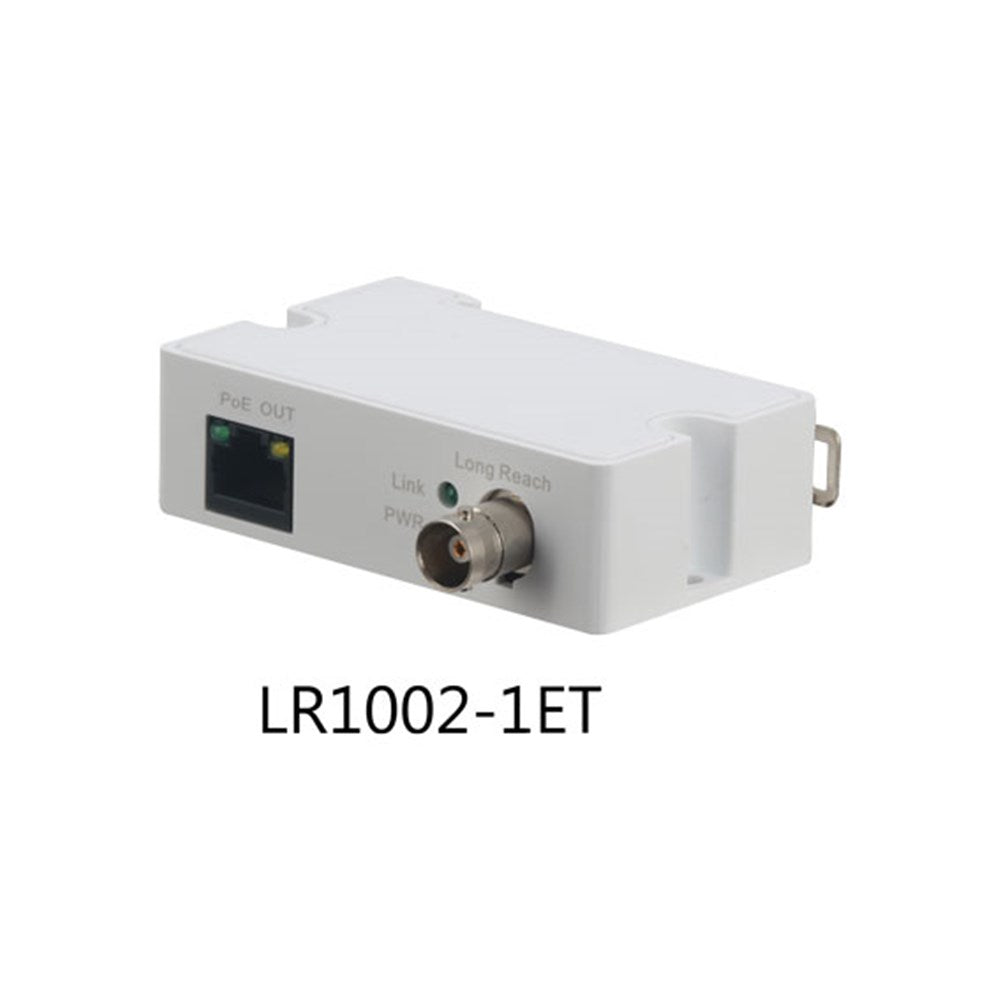

[LR1002-1ET] Dahua Ethernet over Coax Extender Transmitter

[LR1002-1ET] Dahua Ethernet over Coax Extender Transmitter

Product form

Description: Single-Port Long Reach Ethernet over Coax Transmitter Supports IEEE802.3, IEEE802.3u standards. Supports IEEE802.3af and IEEE802.3at power supply standards. Port:... Read more

$45.80 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Dec 30, 2025 23:59:00 +0800
    • No hassle returns, 30 days return

    Description

    Description:

    Single-Port Long Reach Ethernet over Coax Transmitter

    • Supports IEEE802.3, IEEE802.3u standards.
    • Supports IEEE802.3af and IEEE802.3at power supply standards.
    • Port: 1*RJ45 10/100Mbps, 1*BNC.
    • Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps.
    • Supports MDI/MDIX self-adaption.
    • Supports long range power supply transmission via coaxial cable.

    Technical Specification

    Model

    LR1002-1ET

    LR1002-1EC

    Function Port

    1*10/100 Mbps Base-TX

    1*BNC

    Power Consumption

    <2W

    Transmission Bandwidth

    RG59 coaxial cable:

    400m/100Mbps, 1000m/10Mbps

    PoE Protocol

    IEEE802.3af, IEEE802.3at

    Network Standard

    IEEE802.3, IEEE802.3u, IEEE802.3x

    Lightning Protection

    Common Mode 4KV

    Differential Mode 2KV

    Operating Temperature

    -30°C-65°C

    Operating Humidity

    5%~95%

    Weight

    61g

    Dimension (W×D×H)

    79mm×52mm×23mm

    Take RG59 as an example (Max. DC resistance < 5.0Ω/100m)

    LR1002-1ET/LR1002-1EC

    Supports with 48V

    Supports with 53V

    100m

    Bandwidth (Mbps)

    100

    100

    Load Capacity (W)

    21

    25.5

    200m

    Bandwidth (Mbps)

    100

    100

    Load Capacity (W)

    15

    24

    300m

    Bandwidth (Mbps)

    100

    100

    Load Capacity (W)

    11

    19

    400m

    Bandwidth (Mbps)

    100

    100

    Load Capacity (W)

    9

    16

    500m

    Bandwidth (Mbps)

    10

    10

    Load Capacity (W)

    7

    13

    800m

    Bandwidth (Mbps)

    10

    10

    Load Capacity (W)

    5

    8

    1000m

    Bandwidth (Mbps)

    10

    10

    Load Capacity (W)

    4

    6

    Technical Specifications

    Brand DAHUA
    Finish White
    RJ45 Ethernet Interface Yes
    BNC Interface Yes
    Can Be Powered via PoE Yes
    How Many PoE Ports 1

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor
