Technical Specification
|
|
Model
|

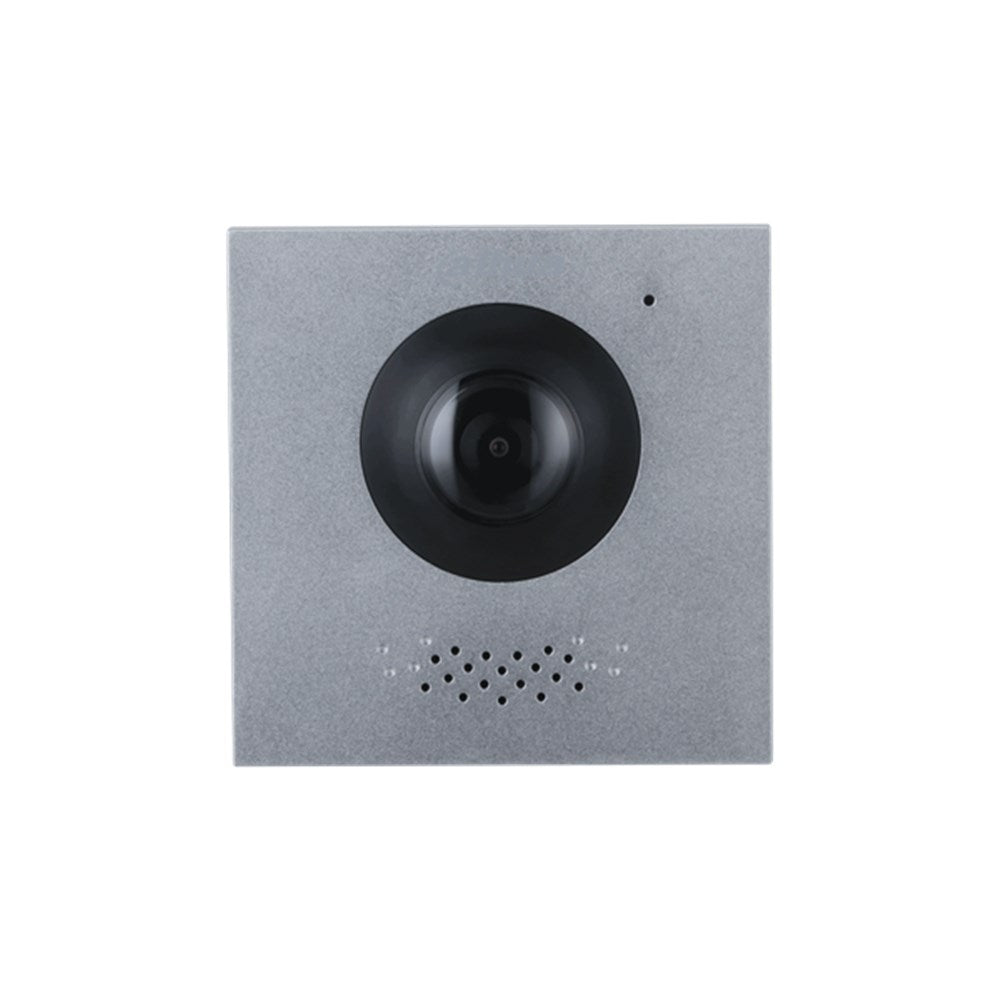

DHI-VTO4202F-P
|
DHI-VTO4202F-MA
|
System
|
|
Main Processor
|
SoC processor
|
|
Operating System
|
Embedded Linux operation system
|
|
Network Protocol
|
IPv4, RTSP, RTP, TCP, UDP, SIP, P2P
|
Basic
|
|
Camera
|
CMOS Low illumination 2MP HD colorful 160° fisheye camera
|
-
|
|
Angle of View
|
H:160°, V:82°, D:180°
|
-
|
|
Focal Length
|
1.95 mm
|
-
|
|
WDR
|
WDR
|
-
|
|
Noise Reduction
|
Noise suppression and echo cancellation
|
|
Video Encoding
|
H.264
|
-
|
|
Frame Rate
|
PAL: 25 fps; NTSC: 30 fps
|
-
|
|
Video Bit Rate
|
256K to 2M
|
-
|
|
Light Compensation
|
IR light
|
-
|
|
Day/Night Switch
|
Yes
|
-
|
|
Audio Encoding
|
PCM G.711 A G.711 U
|
|
Audio Input
|
Built-in omnidirectional microphone
|
|
Audio Output
|
Built-in loudspeaker
|
|
Audio Bit Rate
|
16Khz 16bit
|
Function
|
|
Communication Methods
|
Digital communication
|
|
Unlock Mode
|
Remote unlocking
|
|
Auto Snapshot
|
Yes
|
-
|
|
Leave Videos or Text Messages
|
Yes
|
-
|
|
Web Configuration
|
Yes
|
Performance
|
|
Housing Material
|
Aluminum
|
-
|
Port
|
|
RS-485 Port
|
1 RS-485 half-duplex port
|
|
Alarm Output Port
|
1
|
|
Power Output Port
|
1-ch 12 VDC output 100mA
|
|
Unlock Button
|
Exit button for opening the door
|
|
Door Status Detection
|
Detects door magnetic status
|
|
Door Lock Control
|
NC/COM/NO
|
|
Ethernet Port
|
10/100 Mbps self-adaptive Ethernet/2-wire
|
Alarm
|
|
Tamper Alarm
|
Tamper alarm
|
Regular
|
|
Ingress Protection
|
IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
|
|
Appearance Color
|
Silver
|
|
Housing Material
|
Aluminum
|
|
Power Supply Mode
|
12 VDC/2-Wire IP Inteface/PoE
|
|
Installation Method
|
Surface mount and flush mount
|
|
Accessory
|
Mounting box
|
|
Dimensions
|
100mm×100mm×49.30mm (3.94"×3.94"×1.94")
|
100mm×100mm×36mm (3.94"×3.94"×1.42")
|
|
Protection Grade
|
IK07, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
|
|
Working Temperature
|
-20°C to 60°C (-4°F to 140°F )
|
|
Working Humidity
|
10%RH–90%RH
|
|
Power Consumption
|
≤12W
|
|
Net Weight
|
0.35kg (0.77 lb)
|
|
Gross Weight
|
0.4kg (0.88 lb)
|
|
Model
|
DHI-VTO4202F-MB1
DHI-VTO4202F-MB2
|
DHI-VTO4202F-MB5
|
DHI-VTO4202F-MF
|
Capacity
|
|
Fingerprint
|
-
|
3000
|
System
|
|
Main Processor
|
Embedded MCU processor
|
Button
|
|
Button Type
|
Mechanical button
|
-
|
Port
|
|
Power Output Port
|
5V DC (Provide power for other modules)
|
Regular
|
|
Power Supply Mode
|
5V DC (Provided with power by other modules)
|
|
Color
|
Silver
|
|
Dimensions
|
100mm×49.90mm
×30.50mm
(3.94''×1.96''×1.20'')
|
100mm×100mm
×31mm
(3.94''×3.94''×1.22'')
|
100mm×100mm
×38.50mm
(3.94''×3.94''×1.52'')
|
|
Protection Grade
|
IK07;IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
|
|
Operating Temperature
|
-20°C to 60°C (-4°F to 140°F )
|
|
Operating Humidity
|
10%RH–90%RH
|
|
Power Consumption
|
1W
|
|
Appearance Color
|
Silver
|
|
Model
|
DHI-VTO4202F-MK
|
DHI-VTO4202F-ML
|
System
|
|
Main Processor
|
Embedded MCU processor
|
Button
|
|
Button Type
|
Metal backlight keyboard (0–9, *, #)
|
-
|
Indicator
|
|
Indicator Lights
|
-
|
3
|
Port
|
|
Power Output Port
|
5V DC (Provide power for other modules)
|
Regular
|
|
Power Supply Mode
|
5V DC (Provided with power by other modules)
|
|
Color
|
Silver
|
|
Dimensions
|
100mm×100mm×31mm
(3.94''×3.94''×1.22'')
|
100mm×49.90mm×28.50mm
(3.94''×1.96''×1.12'')
|
|
Protection Grade
|
IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
|
|
Operating Temperature
|
-20°C to 60°C (-4°F to 140°F )
|
|
Operating Humidity
|
10%RH–90%RH
|
|
Power Consumption
|
1W
|
|
Model
|
DHI-VTO4202F-MR
|
DHI-VTO4202F-MS
|
System
|
|
Main Processor
|
Embedded MCU processor
|
Capacity
|
|
Card
|
10000
|
-
|
Display
|
|
Display
|
-
|
3.0 inch STN display
|
Port
|
|
Power Output Port
|
5V DC (Provide power for other modules)
|
Regular
|
|
Power Supply Mode
|
5V DC (Provided with power by other modules)
|
|
Color
|
Silver
|
|
Dimensions
|
100mm×49.90mm×28.50mm
(3.94''×1.96''×1.12'')
|
100mm×100mm×28.50mm
(3.94''×3.94''×1.12'')
|
|
Protection Grade
|
IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
|
|
Operating Temperature
|
-20°C to 60°C (-4°F to 140°F )
|
|
Operating Humidity
|
10%RH–90%RH
|
|
Power Consumption
|
1W
|
|
Model
|
DHI-VTO4202F-MN
|
Regular
|
|
Appearance color
|
Silver
|
|
Dimensions
|
100mm×49.90mm×28.50mm(3.94''×1.96''×1.12'')
|
|
Protection grade
|
IK07;IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
|
