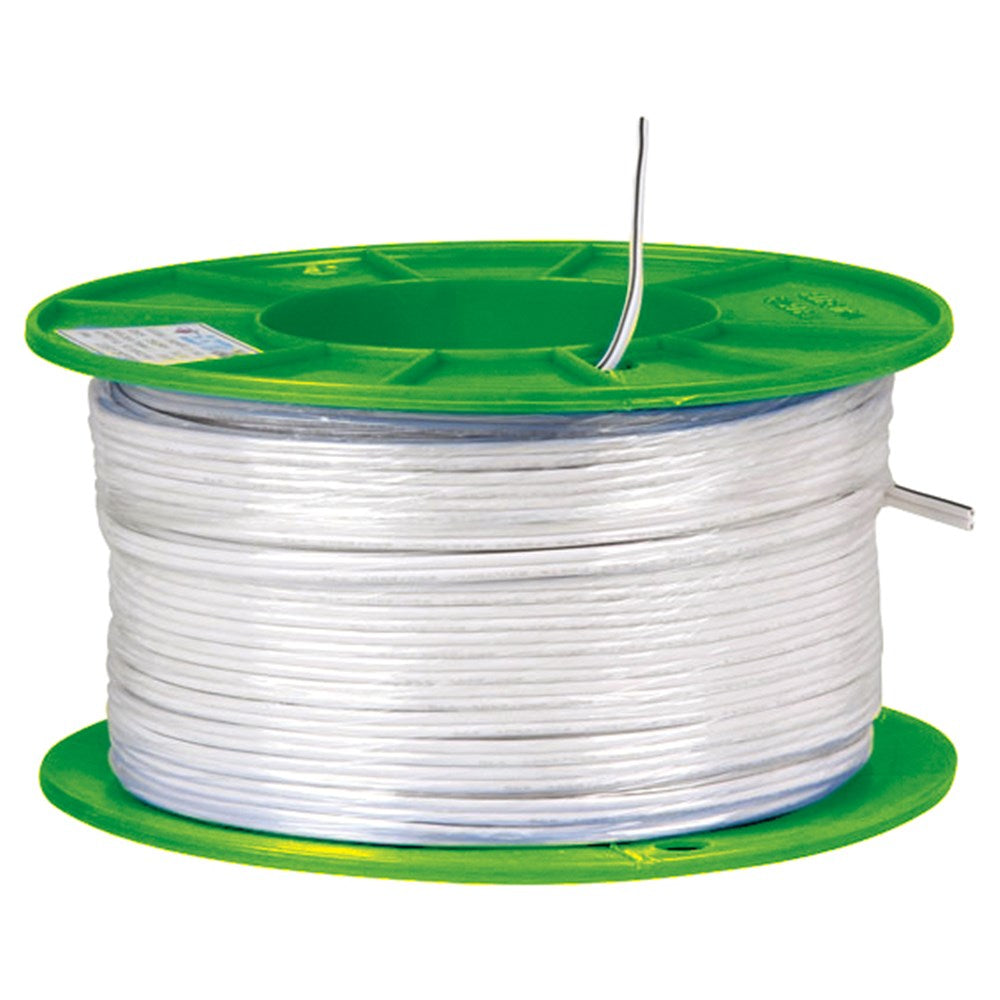

[CMF824020] Dynamic Cable Solutions Figure 8 24/0.20 - 300m Box White
[CMF824020] Dynamic Cable Solutions Figure 8 24/0.20 - 300m Box White
Regular price
$219.69 AUD
Regular price
Sale price
$219.69 AUD
Unit price
/
per
Couldn't load pickup availability
Description:
White PVC jacketed general purpose 2 core FIG 8 cable used for low voltage applications.
- A black stripe on 1 conductor is for easy identification of core to avoid reverse polarity when powering devices.
- Core size is 24 strand 0.20.
- Available in 100m roll and 300m rolls with count down metre marked.
Conductor | 24/0.20 bare copper |
Conductor Resistance (MΩ/KM) | 26.0 |
Jacket | PVC white with black strip |
Thickness of jacket | 0.7 mm |
Min. insulation resistance (MΩ/KM) | 0.011 |
OD | 2.6 x 5 ±0.l mm |
Voltage | 48V |
Technical Specifications:
Brand | Dynamic Cable Solutions |
